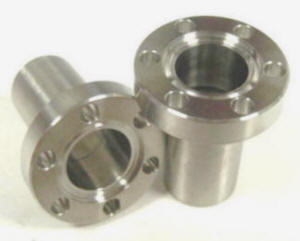

Half Nipple -
UHV (Del-Seal™,
Conflat®)
Features:
UHV rated to 1x10-13 TORR
(mmHG)
Material - 304 Stainless Steel
Temp rating -250ºC to 400ºC
Gasket - OFE Copper
| Part Number |
Flange OD |
Tubing OD
|
OAL |
Tube wall
thickness |
Copper Gasket Part
Number |
Bolt Size |
No. of Bolt holes
|
|
| UHV-133HNPL |
1.33" |
.750" |
1.50" |
.035" |
CG-133 |
#8-32 X 3/4" |
6
|
 |
| UHV-275HNPL |
2.75" |
1.50" |
2.46" |
.065" |
CG-234 |
1/4-28 X 1 1/4" |
6
|
 |
| UHV-338HNPL |
3 3/8" |
2.00" |
3.21" |
.065" |
CG-338 |
5/16-24 X 1 3/4" |
8
|
 |
| UHV-412HNPL |
4 1/2" |
2.50" |
4.12" |
.065" |
CG-412 |
5/16-24 X 2" |
8
|
 |
| UHV-458HNPL |
4 5/8" |
3.00" |
3.53" |
.065" |
CG-458 |
5/16-24 X 2 1/4" |
10
|
 |
| UHV-600HNPL |
6.00" |
4.00" |
5.31" |
.083" |
CG-600 |
5/16-24 X 2 1/4" |
16
|
 |
| UHV-800HNPL |
8.00" |
6.00" |
6.56" |
.120" |
CG-800 |
5/16-24 X 2 1/4" |
20
|
 |
| UHV-1000HNPL |
10.00" |
8.00" |
8.00" |
.120" |
CG-1000 |
5/16-24 X 2 1/2" |
24
|
 |
