Elbow 90 Degree Long

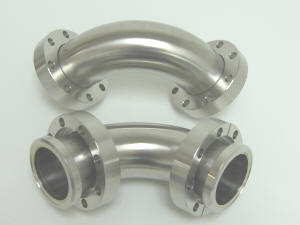

Elbows 90º with Tangents
- UHV (Del-Seal™,
Conflat®)
Features:
UHV rated to 1x10-13 TORR
(mmHG)
Material - 304 Stainless Steel
Temp rating -250ºC to 400ºC
Gasket - OFE Copper
Elbows 90 Degrees
w/ TANGENTS UHV - 2
Rotatable UHV / CF Flanges. Non-Tapped Bolt holes. Polished inside and
out
| Flange OD |
Part Number |
Tubing OD /
Wall thickness |
Copper Gasket
Part Number |
Bolt Size |
No. of Bolt holes
|
|
| 1.33" |
UHV-133TELB |
.750" / .035" |
CG-133 |
#8-32 X 3/4" |
6
|
 |
| 2.75" |
UHV-275TELB |
1.50" / .065" |
CG-234 |
1/4-28 X 1 1/4" |
6
|
 |
| 3.375" |
UHV-338TELB |
2.00" / .065" |
CG-338 |
5/16-24 X 1 3/4" |
8
|
 |
| 4.50" |
UHV-412TELB |
2.50" / .065 |
CG-412 |
5/16-24 X 2" |
8
|
 |
| 4.625" |
UHV-458TELB |
3.00" / .065" |
CG-458 |
5/16-24 X 2 1/4" |
10
|
 |
| 6.00" |
UHV-600TELB |
4.00" / .083" |
CG-600 |
5/16-24 X 2 1/4" |
16
|
 |
| 8.00" |
UHV-800TELB |
6.00" / .120" |
CG-800 |
5/16-24 X 2 1/4" |
20
|
 |
| 10.00" |
UHV-1000TELB |
8.00" / .120" |
CG-1000 |
5/16-24 X 2 1/2" |
24
|
 |
