    Home>Products>UHV Components>UHV Flanges>UHV Rotatable Tapped Blank

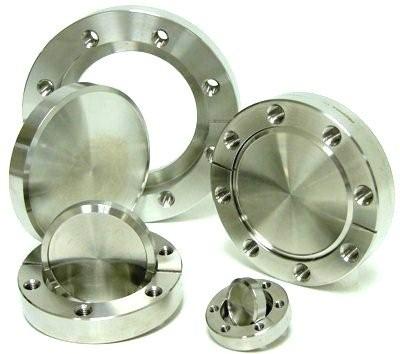

BLANKS - Conflat®, UHV, Del-Seal™ Flanges. Rotatable, Tapped bolt holes.

Features:
UHV rated to 1x10^-13 TORR (mmHG)
Material - 304 Stainless Steel
Temp rating -250ºC to 400ºC
Gasket - OFE Copper

Flange OD	Part Number	Copper Gasket Part Number	Bolt Size	No. of Bolt holes
1.33"	UHV-133RTB	CG-133	#8-32 X 1/2"	6
2.75"	UHV-275RTB	CG-234	1/4-28 X 1"	6
3.375"	UHV-338RTB	CG-338	5/16-24 X 1 1/4"	8
4.50"	UHV-412RTB	CG-412	5/16-24 X 1 1/4"	8
4.625"	UHV-458RTB	CG-458	5/16-24 X 1 1/4"	10
6.00"	UHV-600RTB	CG-600	5/16-24 X 1 1/4"	16
8.00"	UHV-800RTB	CG-800	5/16-24 X 1 3/4"	20
10.00"	UHV-1000RTB	CG-1000	5/16-24 X 1 3/4"	24
