    Home>Products>UHV Components>UHV Flanges>UHV Rotatable Blank

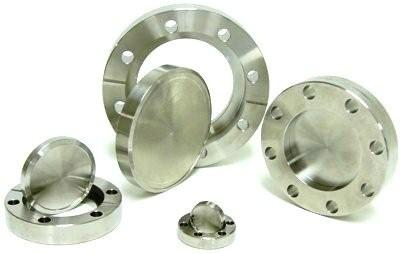

BLANKS - Conflat®, UHV, Del-Seal™ Flanges. Rotatable, Non-Tapped, Clearance bolt holes

Features:
UHV rated to 1x10^-13 TORR (mmHG)
Material - 304 Stainless Steel
Temp rating -250ºC to 400ºC
Gasket - OFE Copper

Flange OD	Part Number	Copper Gasket Part Number	Bolt Size	Bolt  hole size	No. of Bolt holes
1.33"	UHV-133RB	CG-133	#8-32 X 3/4"	.172"	6
2.75"	UHV-275RB	CG-234	1/4-28 X 1 1/4"	.265"	6
3.375"	UHV-338RB	CG-338	5/16-24 X 1 3/4"	.332"	8
4.50"	UHV-412RB	CG-412	5/16-24 X 2"	.332"	8
4.625"	UHV-458RB	CG-458	5/16-24 X 2 1/4"	.332"	10
6.00"	UHV-600RB	CG-600	5/16-24 X 2 1/4"	.332"	16
8.00"	UHV-800RB	CG-800	5/16-24 X 2 1/4"	.332"	20
10.00"	UHV-1000RB	CG-1000	5/16-24 X 2 1/2"	.332"	24
